SHANZHONG 21ton Wheel Excavator SZL215 Hydraulic Digger

Name: SHANZHONG 21ton Wheel Excavator SZL215 Hydraulic Digger
Brand: shanzhong
Price: 98000 USD

Buy cheap SHANZHONG 21ton Wheel Excavator SZL215 Hydraulic Digger product

Brand Name : shanzhong

Model Number : SZL215

Place of Origin : China

MOQ : 1 unit

Price : USD98000/unit

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200unit per month

Delivery Time : 30days

operationing weight : 21000KG

rated speed : 130/2200 (kw/rpm)

Max Digging Height : 10600mm

Max Digging Radius : 9700mm

power : 130hp

Wheelbase : 2840mm

Max Digging Depth : 6350mm

Bucket capacity : 1.0m3

Moving Type : wheel excavator

Contact Now

21ton wheel Excavator SZL215 hydraulic Digger

SHANZHONG 21ton Wheel Excavator SZL215 Hydraulic Digger

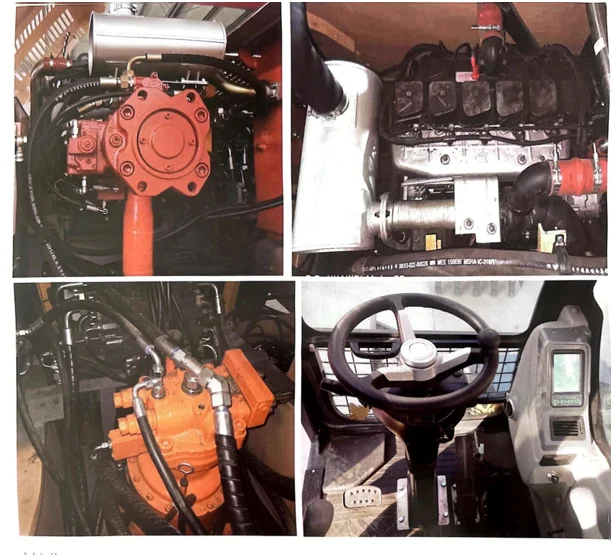

Imported axles, imported hydraulic system, intelligent control, workmanship, high working efficiency, Fuel efficient

The overall performance of the hydraulic system is reasonably matched with the output power of the engine,which greatly reduces energy loss.

Intelligent control,four-wheel drive, four-wheel hydraulic oil brake

Cummins EFI engine turbocharging and fuel cooling system, high fuel efficiency, low fuel consumption,strong durability.

SHANZHONG 21ton Wheel Excavator SZL215 Hydraulic Digger

Item	Size
Shipping Length	9700m
Shipping Height	3340mm
Overall Width	2730mm
Radius,Swing Center to Rear End	2750mm
Wheelbase	2840mm
Wheel Tread	1980mm
Counterweight Ground Clearance	345mm
Min Ground Clearance	1259mm
Ground Clearance of Outrigger	450mm
Ground Clearance of Transmission	420mm
Width of Bulldozer Plate	2600mm
Height of Bulldozer Plate	560mm
Lifting Height of Bulldozer Plate	420mm
Bucket Volume	1.0m³
Boom Length	5650mm
Arm Length	2920mm
Max.Digging Radius	9700mm
Max.Digging Height	10600mm
Max.Digging Depth	6350mm
Max.Dumping Height	7800mm
Hydraulic System Pressure	34.3Mpa
Hydraulic System Flow	2*231.7 l/min
Bucket Digging Force	134/126kn
Arm Digging Force	99/93kn
Rotation Speed	12r/min
Travel Speed	28-40km/h
Gradeability	35%
Approximate Weight	21000kg

SHANZHONG 21ton Wheel Excavator SZL215 Hydraulic Digger
